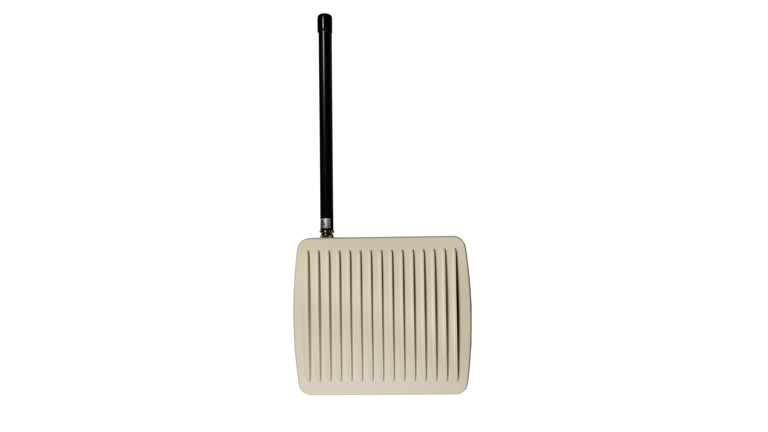

Atmos Remote Monitor

Atmos Remote Monitor is a cost effective, battery powered, radio communications leak detection device that can be used to record data from existing flow meters at multiple points. As well as providing intrusive pressure measurement.

Designed for a variety of applications such as:

Remote locations
High Consequence Areas (HCAs)
Water crossings
Areas with poor communications & power sources
Large well gathering networks
Multiple turbine flow meters
Multiphase pipelines

This product is currently a proof of concept under development and is therefore subject to change.

Technical specification

One-year battery life
Onboard wave signal processing
Radio link comms to a central receiver
Capable to connect 128 end points per radio network channel
-60 C to +60 C temperature range
OPC tags (allowing data to be provided to the SCADA for each flow meter and pressure).
Connection type ½ NPT male

Intrusive pressure data and flow data via the pulse from the existing flow meters
Processes pressure at high speeds
Counts flow pulses coming from up to 4 meters
Battery Powered 3.3 or external 12-24 Volts powered
Optional geophone for pipeline scouring detection
Unit is explosion proof, class 1 div 1
Static/on demand pressure testing
