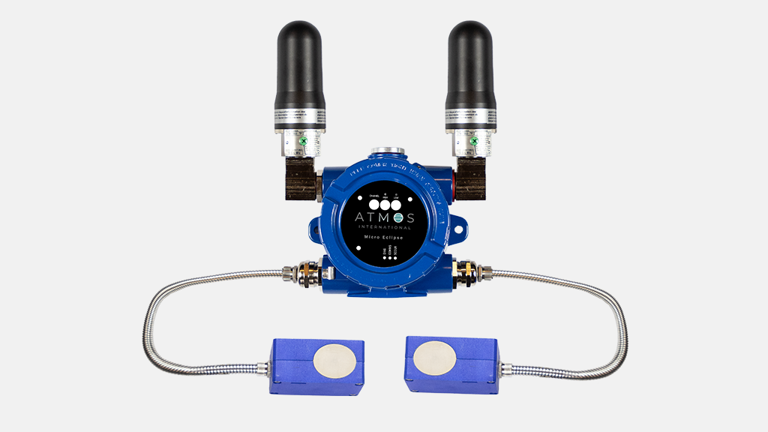

Atmos Sentinel

Combines real-time non-intrusive flow measurement, intrusive pressure and acoustic vibration

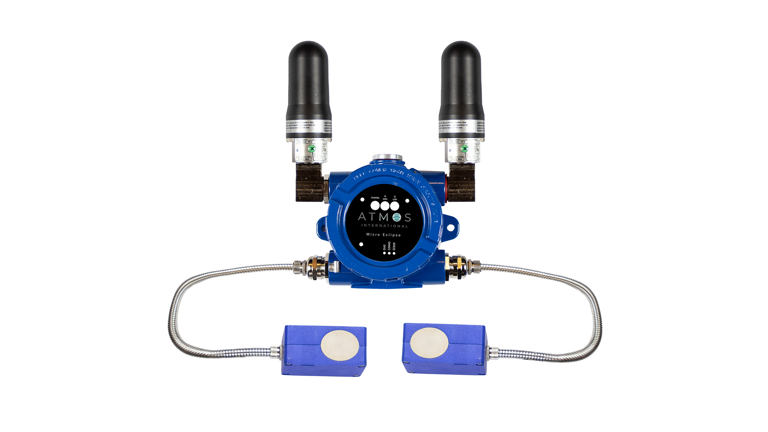

Atmos Sentinel Main

Providing leak detection in confined, challenging or remote locations. An easy to retrofit device that can:

  • Provide onboard cellular or radio link communication.
  • Be powered by an onboard replaceable battery or by solar power
  • Provide different configurations depending on power and communication requirements.
  • Be installed underground

This product is currently a proof of concept under development and is therefore subject to change.

Technical specification

  • 3.6 VDC replaceable battery (up to one year life)
  • Solar power options
  • 60 Hz data acquisition rate
  • Easily retrofitted to existing available tapping points
  • -20 C to +60 C temperature range
  • 24/7 leak detection coverage
  • Cellular and radio link communication options
  • Communication hub options for devices installed underground
