Atmos JSP

Supports turnkey leak detection solutions for low bandwidth and remote locations

JSP Wht Closed X2

A flow-correction processor that collects and filters flow data from a non-intrusive flow sensor and inputs to collect pressure and temperature data. All held within an enclosed unit made to fit project specifications.

  • Non-intrusive instrumentation including pressure, flow, temperature and SOS
  • Explosion-proof field enclosure
  • Data acquisition and storage
  • Data transmission via ethernet, radio or GSM
  • Option for local LDS processing
  • Interfaces with non-intrusive flow sensors, non-intrusive pressure sensors, vibration sensors, traditional flow meters and intrusive pressure sensors
  • Designed for effective low-cost leak detection systems

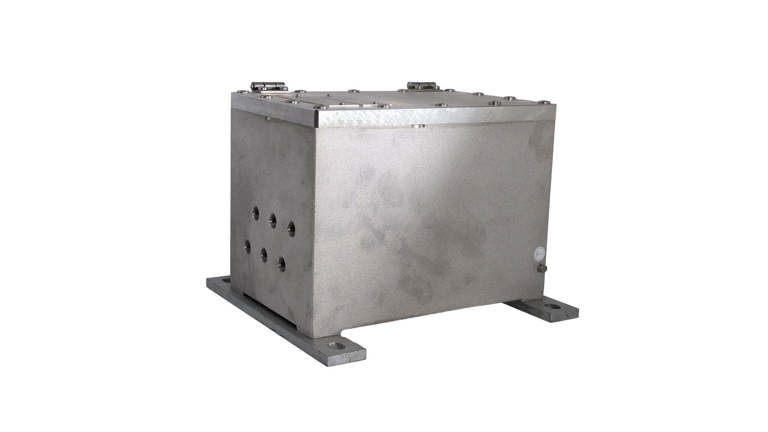

The image is an example of cabinet, the actual cabinet will be designed to a weight and dimension to fit the project specification.

Technical specification

  • Voltage: 24 VDC
  • Power: dependent on options selected, consumption will vary from 6-18 W maximum. Solar-power options are available
  • Operating temperature: -40 C to +65 C
  • ATEX/IECEx: Zone 1 Gas IIC, T6
  • Ingress: IP66
  • Material: Zero copper, aluminium
  • Coating, Epoxy: RAL 7035
  • Communications: 3G, RS232, Radio 868 - 915 Mhz, TCP/IP, or RS485
  • Optional fiber optic receiver
  • RF output (if enabled): 1 W
  • Sample rate: 60 Hz
  • Ultrasonic output power: 1 W
  • Dimensions and weight: vary depending on project specification
