Key pipeline solution updates
Building on the success of Q1 2025, we’ve ended the second quarter of 2025 with ongoing success for our customers.
Quarterly achievements
- 6 leaks detected
- 11 SATs completed
- 2 FATs completed
- 3 Training sessions delivered
- 2 Customers upgraded to the latest software
Below is a selection of success stories from a busy quarter at Atmos, including:
- Advancing leak detection on rising sewer mains
- Pipeline analytics uncovering a customer’s hidden pressure anomaly
- Detecting pigging-related flow imbalance and adapting to reduce false alarms
- Showcasing our innovation worldwide: Q2 event highlights
Read our quarterly update below to find out more.
Advancing leak detection on rising sewer mains
In Q2, Atmos supported the monitoring of a UK customer’s critical rising sewer main using Atmos Eclipse and the latest Atmos 4G Sentinel models. The system applies single-ended leak detection techniques to track potential failures along the sewer pipeline.

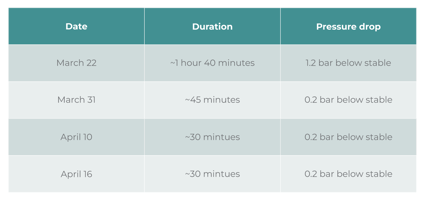

Closely analyzing the pressure data, we reported several significant leak events that align with recently observed flooding incidents:
Alongside these main events, many short-duration leaks, most under one minute, have also been detected. These brief anomalies are common in sewer pipelines, where debris may temporarily seal leak points, highlighting the need for continuous, high sensitivity monitoring.
On the downstream end of another UK pipeline, Atmos recently installed a 4G Atmos Sentinel (see Figure 1) to enhance detection and location capabilities.
Figure 1: Atmos Sentinel 4G installed on a process connection within the customer’s chamber. The 4G antenna has been mounted directly onto the unit and even when the large metal cover is in place, we have been receiving data via 4G.
Notably, Atmos Sentinel’s 4G antenna continues to transmit data reliably even when housed in a chamber beneath a heavy metal cover, underscoring the robustness of the solution.
Atmos continues to expand its water monitoring solutions in the UK and across the world, helping clients detect leaks faster, minimize flooding risk and improve pipeline resilience
Learn more Meet us at our water and wastewater conference
Pipeline analytics help uncover customer’s hidden pressure anomaly
Atmos’ pipeline analytics platform helped a North American operator detect and resolve a recurring pressure anomaly. During a routine review, the system flagged a sharp increase in static alarms on two detection units. While initial investigations revealed oscillating pressure, no corresponding system tag was present, leaving the root cause unclear.
Figure 2: The increase in static alarms
Working closely with the client’s facility operations team, the issue was traced to a previously overlooked thermal pressure safety valve on a branched line. Rising daytime temperatures were causing thermal expansion in stagnant sections of pipework, triggering pressure relief events that aligned with the observed alarms.
Thanks to detailed alarm data and actionable insights, the operator was able to identify the anomaly early, understand the cause and take corrective action, avoiding unnecessary alarm fatigue and improving system visibility.
This pipeline analytics platform integrates with Atmos products as an additional service, periodically retrieving information about the status of all leak detection units and providing a summary of network activity such as leak alarms, operational status, uptime and more. To find out more about this service, contact us.
Detecting pigging-related flow imbalance and adapting to reduce false alarms
Last quarter, Atmos Wave demonstrated its advanced sensitivity and reliability during a standard pigging operation on a long distance crude oil pipeline in West Africa. While operators were filling the pig receiver, positioned between the inlet and outlet flow meters, the system detected a sudden flow imbalance and triggered a leak alarm.
Although no actual leak occurred, the temporary discrepancy (see Figure 2), caused by the pig receiving process, was enough to trigger Atmos Wave’s alert. The system identified what appeared to be a ~1% leak within minutes, despite a 6% discrepancy between the flow meters and a separation of over 200 km between them. This performance is a direct result of careful tuning and the system’s ability to interpret nuanced operational behaviors.
Figure 3: Graph detailing the temporary flow increase
The client praised the system’s responsiveness and accuracy, particularly in its ability to detect and differentiate simulated leak conditions from regular operational activity.
Adapting to reduce false alarms
As part of the testing process, the system’s adaptive learning capability was also evaluated. This feature automatically adjusts sensitivity based on known pipeline behaviors, such as pigging, reducing the likelihood of false alarms. Before applying this feature, the Kappa value (a leak confidence indicator) was nearing the alert threshold. After enabling the learning function, the Kappa value dropped closer to zero, reflecting a more stable system response and enhancing long-term reliability.
Discover Atmos Wave’s potential
Showcasing our innovation worldwide: Q2 event highlights
In Q2, Atmos International participated in 6 major industry events across North America, Latin America, Europe and Asia. Our teams exhibited, presented technical papers and held high-level meetings, demonstrating our leadership in leak detection, simulation and pipeline monitoring technologies.
We engaged with water utilities, oil and gas operators, regulators and government officials, strengthening relationships and showcasing real-world performance across all sectors. Presentations delivered this quarter included:
- Solutions for upstream theft detection in response to a global water shortage - Martin Duff (Business Development Director for water), Global Leakage Summit
- Ongoing pipeline theft challenges and the importance of hardware instrumentation for theft detection - Harry Smith, (Sales and Senior Research Engineer), Pipeline Technology Conference (ptc) Berlin
- Real-time pipeline leak detection at Equinor - Co-presented by Helena Sirnes (Leading Advisor Pipeline Operation at Equinor) and Joe Kelly (Principal Engineer at Atmos), ptc Berlin
- Inclusive leadership: engaging youth in the pipeline industry - Workshop sponsored by Atmos at Global Women in Pipeline to empower women and engage men in the pipeline industry
- Real-time leak detection in gas pipelines - why it is needed and how technology can help - Giancarlo Milano (Principal Simulation Engineer), Pipeline Simulation Interest Group (PSIG) Conference
- Overcoming commissioning challenges in real-time gas pipeline simulation: a case study - Garry Hanmer (Senior Simulation Consultant), PSIG Conference
- API RP 1175 continuous improvement CPM for HVL pipeline - Co-presented by Derek Hibler (Facilities Engineer at Chevron) and Matthew Savidge (Team Manager at Atmos International), API Pipeline Conference
- Improving leak detection performances on gathering systems using segmentation meters - Co-presented by Carlos Garza (Pipeline Operations Control Center Manager at Summit Midstream) and Peter Han (Vice President at Atmos International), API Pipeline Conference
- Extending advanced monitoring technologies to a new pipeline while maintaining them on an existing pipeline - Co-presented by Yan Qiao (Pipeline Simulation Specialist at Trans Mountain) and Lisa Becker (Team Manager at Atmos International), API Pipeline Conference
- Implementing leak detection on long compressible fluid (C3, C5) pipelines - Co-presented by Clayton Barrie (Leak Detection Specialist at Keyera) and Ryan Sperling (Business Development Manager at Atmos International), Automation Expo & Conference (AEC)
- The challenges of batch tracking and leak detection on complex multi-product pipelines - Co-presented by Ryan Sperling (Business Development Manager) and George Elder (Project Engineer, EIT), AEC
We also delivered live demonstrations of Atmos Simulation Suite (SIM) at the Naturgas Congress in Colombia and met with senior government and utility leaders in Latin America to discuss future projects.
Didn’t catch one of our presentations?
Contact us to find out what you missed
30 years and beyond as the leading leak detection and simulation provider
Atmos was originally founded in 1995 with a primary focus to detect pipeline leaks reliably on operational pipelines. In the past 30 years, advances in our technologies have shown our ongoing commitment to growing and adapting to the changes within the oil, gas, chemical, water, aviation and mining industries.
Discover why we are best placed to help you ensure any pipeline leak or theft is detected reliably and located accurately
